SMS15/16 Routine Boom Stands

The SMS15 and SMS16 stereo microscope boom stands are suited for routine inspection of large samples where continuous horizontal movement of the stereo-microscope is not required.

Tried and true design, premium materials and precision machining have made SMS15 and SMS16 boom stands the gold standard for high quality, durability and economy. The precision ground shafts slide on nylon bearing surfaces and are clamped securely in the solid aluminum cross slider by soft-grip knobs. The stereo microscope mounting is via the industry standard 5/8″ bonder socket. Non-bonder style stereo microscope focus mounts and cameras are easily accommodated via SPOT Imaging’ tilting and non-tilting adapters. The SMS15 comes with a table clamp, and the SMS16 comes with your choice of a table mount or weighted base.

Features

  • Large precision ground 38mm (1.47″) shafting
  • Anti-corrosion surfaces of stainless steel, anodized aluminum, plated steel and catalyzed epoxy solid aluminum cross slider block with nylon bearing surfaces
  • Value-priced
  • 15.75″ or 24″ tall vertical pole standard, custom lengths available
  • 20.5″ long horizontal pole standard, custom lengths available
  • 5/8″ diameter bonder mount socket for standard stereo microscope focus mounts
  • Adapters available for current and legacy non-bonder stereo microscope focus mounts and cameras with 1/4-20″ threaded mounts

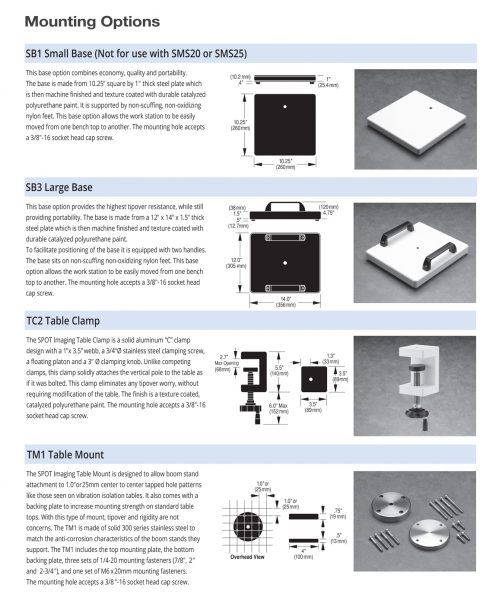

  • Variety of base options

SMS15 and SMS16 Boom Stand Models

Catalog Number Description Quotations Purchase Online
SMS15A SMS15A Boom Stand with 15.75″ Vertical Post and Table Clamp* Request a Quote Buy Now
SMS15B SMS15B Boom Stand with 24″ Vertical Post and Table Clamp* Request a Quote Buy Now
SMS16A SMS16A Boom Stand with 15.75″ Vertical Post and Weighted Base* Request a Quote Buy Now
SMS16A-NB SMS16A Boom Stand with 15.75″ Vertical Post without Weighted Base* Request a Quote Buy Now
SMS16A-TM SMS16A Boom Stand with 15.75″ Vertical Post and Table Mount* Request a Quote Buy Now
SMS16B SMS16B Boom Stand with 24″ Vertical Post and Weighted Base* Request a Quote Buy Now
SMS16B-NB SMS16B Boom Stand with 24″ Vertical Post without Weighted Base* Request a Quote Buy Now
SMS16B-TM SMS16B Boom Stand with 24″ Vertical Post and Table Mount* Request a Quote Buy Now

*Note: The horizontal arm on the SMS15 and SMS16 terminates in a 5/8″ bonder socket mount. If you want to mount a stereo microscope¬†without a bonder dowel or a camera to the SMS15 or SMS16, you will also need a tilting or non-tilting adapter.
