SMS25 Articulating Arm Boom Stands

Perfect for use in a cramped work area, the SMS25 stand series provides easy positioning of medium duty stereo microscopes through all three dimensions and can “fold” up against the wall when not in use. An additional space-saving advantage for this system is that the support arm requires no back clearance, unlike standard boom stand systems. The z-dimension movement is assisted with an adjustable tension counterbalance.

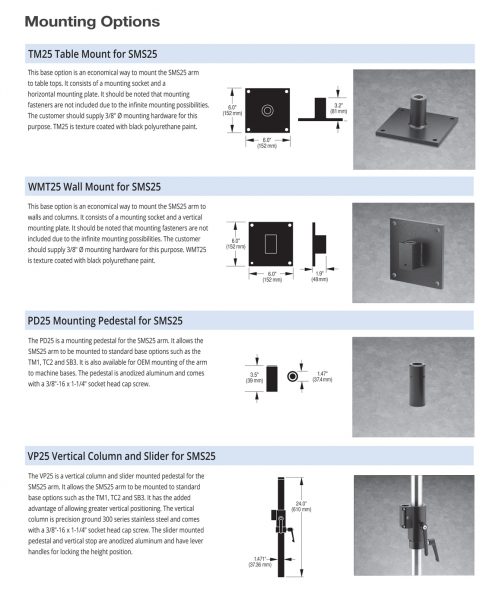

The stereo microscope mounting is simple via the industry standard 5/8″ bonder socket. Non-bonder style stereo microscope focus mounts and cameras are easily accommodated via SPOT Imaging’ tilting and non-tilting adapters. The base mounting options include a weighted base, a rugged table clamp, a wall mount, and a 1/4″-20 grid table mount system that can be used on standard tables.

Features

  • Articulating arm with easy positioning in all three dimensions
  • Large 43.7mm (1.72″) diameter, precision ground, stainless steel vertical pole
  • Anti-corrosion surfaces of stainless steel, anodized aluminum, plated steel and catalyzed epoxy
  • 24″ tall vertical pole standard, custom lengths available
  • 29.5″ horizontal extension
  • Standard 5/8″ diameter bonder mount socket for standard stereo microscope focus mounts
  • Adapters available for current and legacy non-bonder stereo microscope focus mounts
  • Several base options

SMS25 Boom Stand Models

Catalog Number Description Quotations Purchase Online
SMS25 SMS25 Articulating Arm Boom Stand with 24″ Vertical Post and Weighted Base* Request a Quote Buy Now
SMS25-AR SMS25 Articulating Arm Boom Stand without Vertical Post or Weighted Base* Request a Quote Buy Now
SMS25-NB SMS25 Articulating Arm Boom Stand with 24″ Vertical Post without Base Option* Request a Quote Buy Now
SMS25PD SMS25 Articulating Arm Boom Stand with Mounting Pedestal, Weighted Base without Vertical Post* Request a Quote Buy Now
SMS25PD-NB SMS25 Articulating Arm Boom Stand with Mounting Pedestal without Weighted Base or Vertical Post* Request a Quote Buy Now
SMS25TCPD SMS25 Articulating Arm Boom Stand with Mounting Pedestal and Table Clamp* Request a Quote Buy Now
SMS25TCVP SMS25 Articulating Arm Boom Stand with 24″ Vertical Post and Table Clamp* Request a Quote Buy Now
SMS25TM SMS25 Articulating Arm Boom Stand with Table Mount* Request a Quote Buy Now
SMS25TMVP SMS25 Articulating Arm Boom Stand with 24″ Vertical Post and Table Mount* Request a Quote Buy Now
SMS25TMPD SMS25 Articulating Arm Boom Stand with Table Mount and Mounting Pedestal, without Vertical Post* Request a Quote Buy Now
SMS25W SMS25 Articulating Arm Boom Stand without Vertical Post with Wall Mount* Request a Quote Buy Now

*Note: The horizontal arm on the SMS25 terminates in a 5/8″ bonder socket mount. If you want to mount a stereo microscope¬†without a bonder dowel or a camera to the SMS25, you will also need a tilting or non-tilting adapter.
